Deepdene: SR Underground Telephone Exchange and Control Rooms


Toggle site summary [+/-]

What:Underground headquarters
Where:Near Dorking, Surrey
Built: c.1941
Architect: Southern Railway Chief Engineer's Office
Abandoned: 1966
Listed: No, but Deepdene Gardens listed Grade II*
Visited: 2018
Last Known Condition: Fair with limited vandalism. Locked.
Page Updated: January 2018

At the outbreak of War in 1939, the Southern Railway Company realised that its London headquarters at Waterloo were vulnerable to enemy bombs; a direct hit might cripple the entire network, taking out telephone services, traffic control and hundreds of staff. As an emergency measure, the company purchased the recently-closed Deepdene Hotel, a large Italianate mansion near Dorking in Surrey. As well as being far from the daily aerial bombardment that plagued the capital, Deepdene had the advantage of good transport links and an extensive system of sandstone tunnels, originally used by 17th century owner Charles Howard as a laboratory.

It was in these tunnels, enlarged and strengthened with brick and concrete in 1941, that the Southern Railway built their underground telephone exchange and traffic control centre, hidden from the air and protected a steep bank of earth.

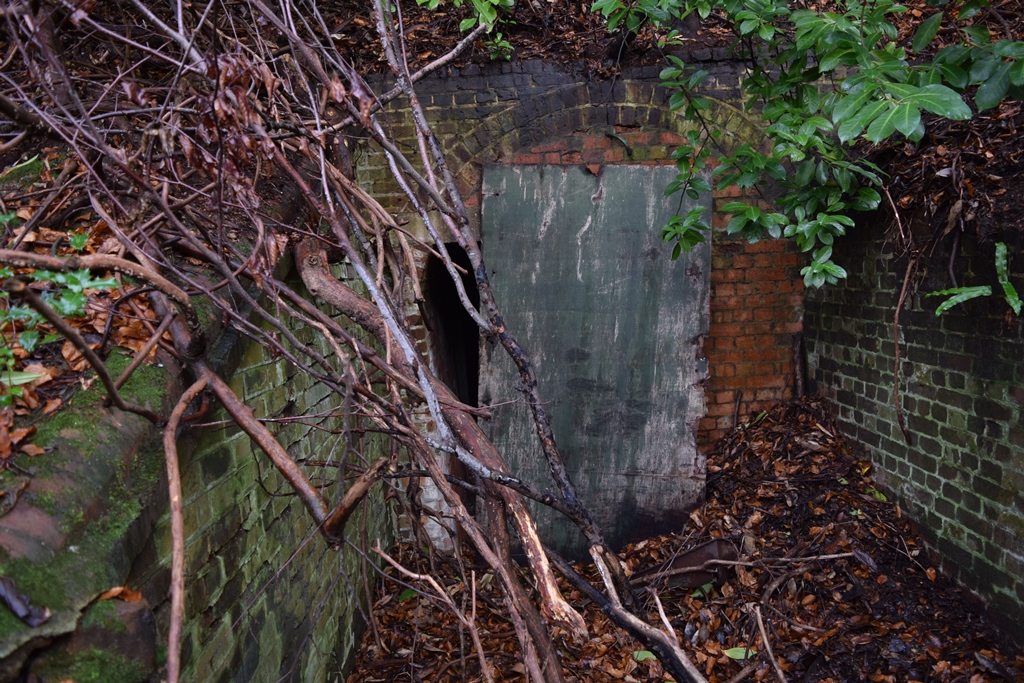

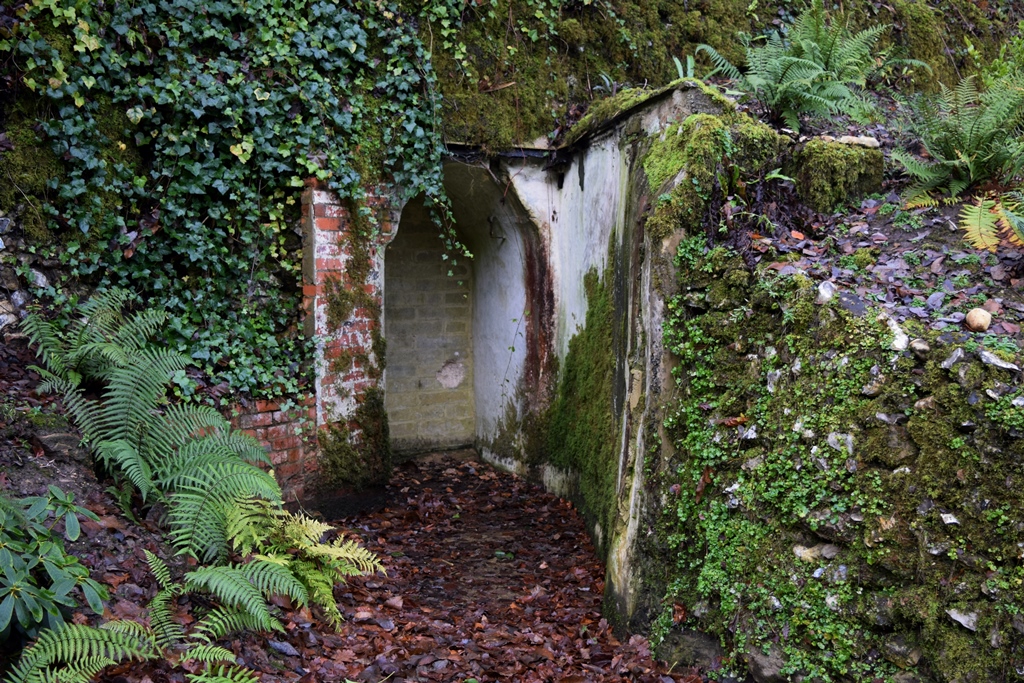

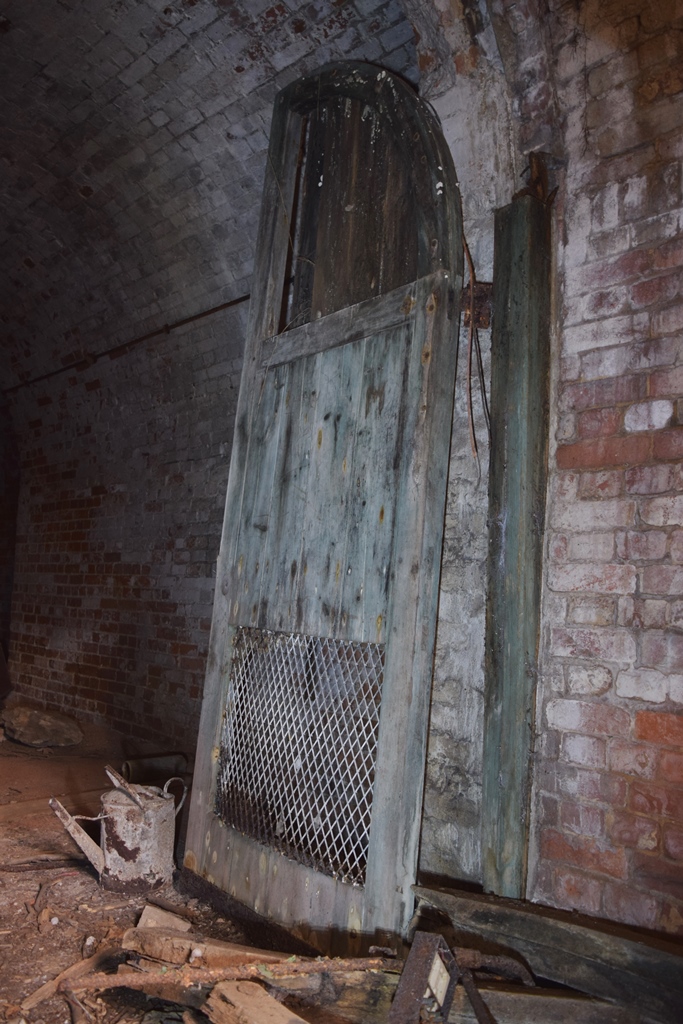

One of three main entrances to the underground complex.

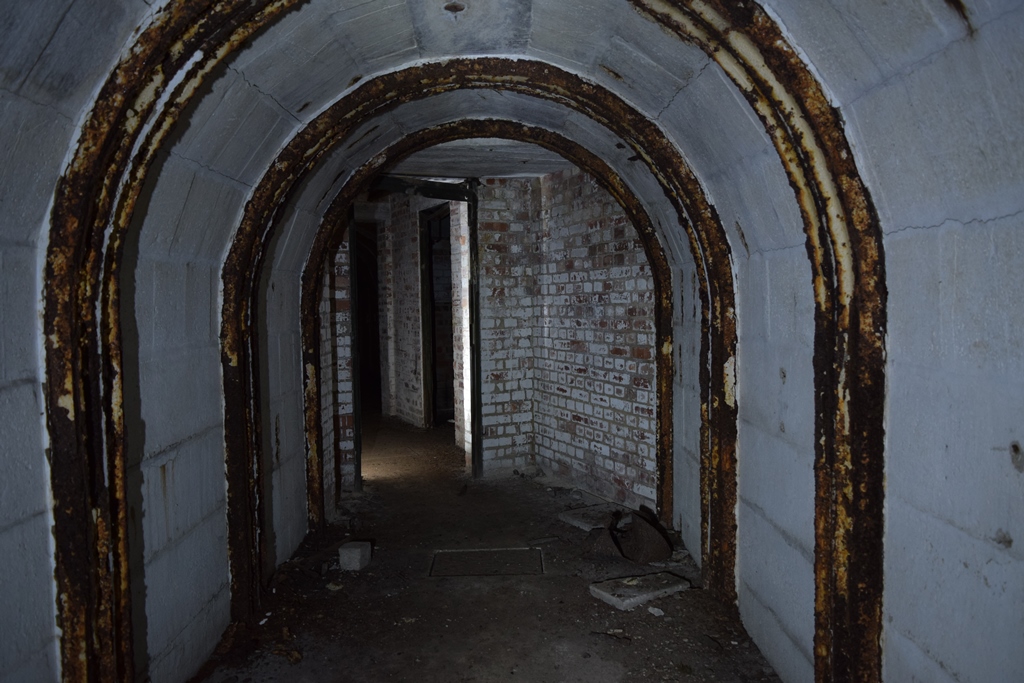

First transverse passage, central entrance on the right.

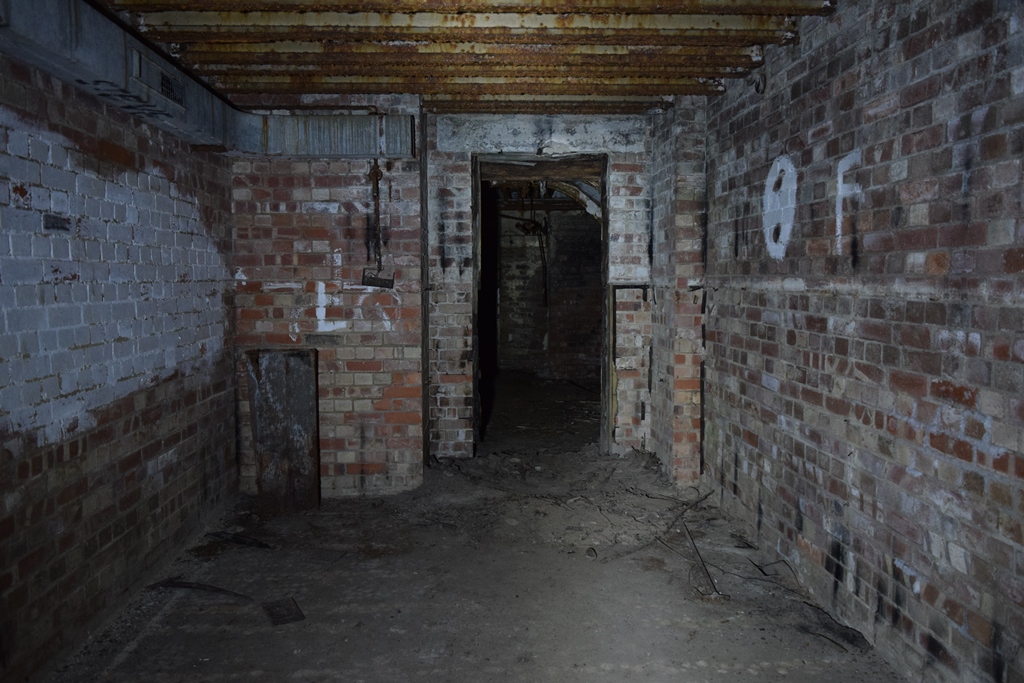

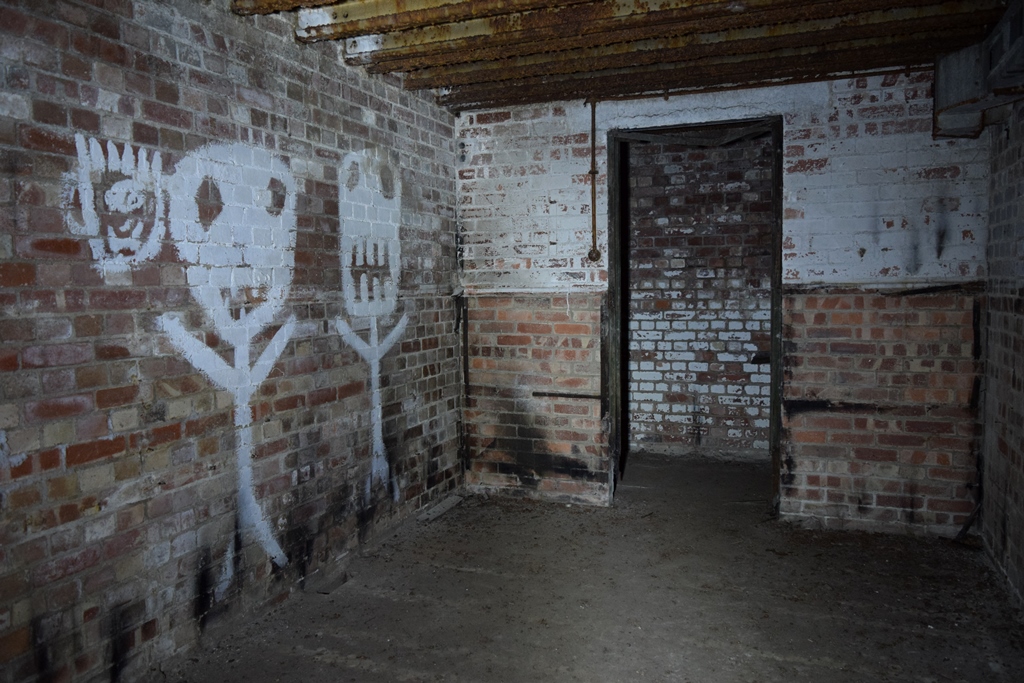

Night officer's bedroom
Night officer's bedroom

Night officer's bedroom
Night officer's bedroom

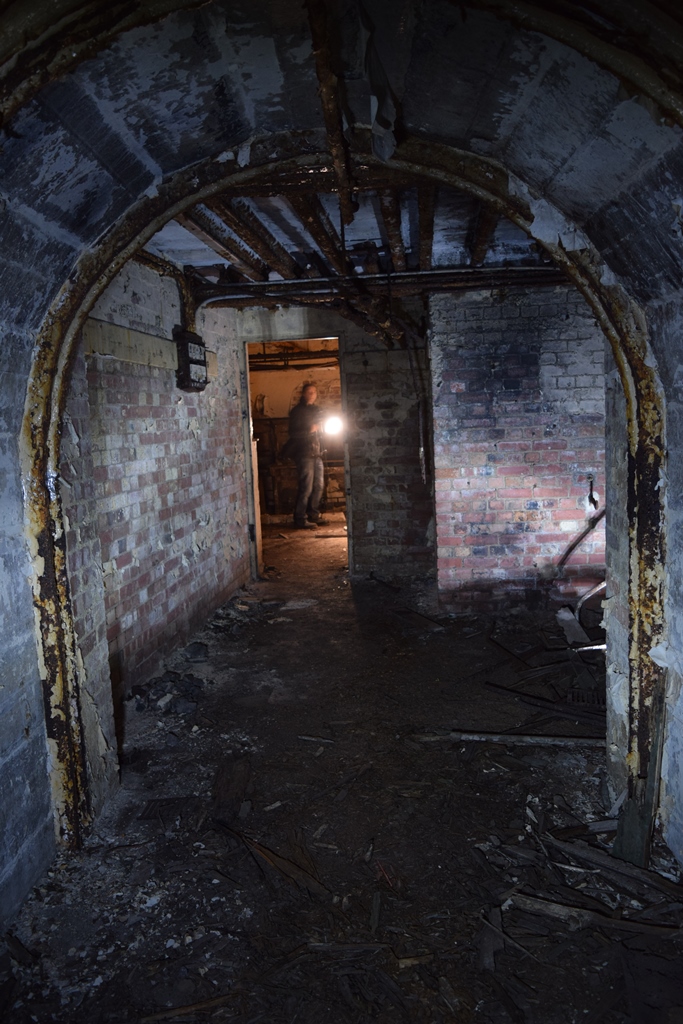

Looking towards the telephone exchange - this bloke scared the hell out of me, no idea who he was but seemed pretty harmless.

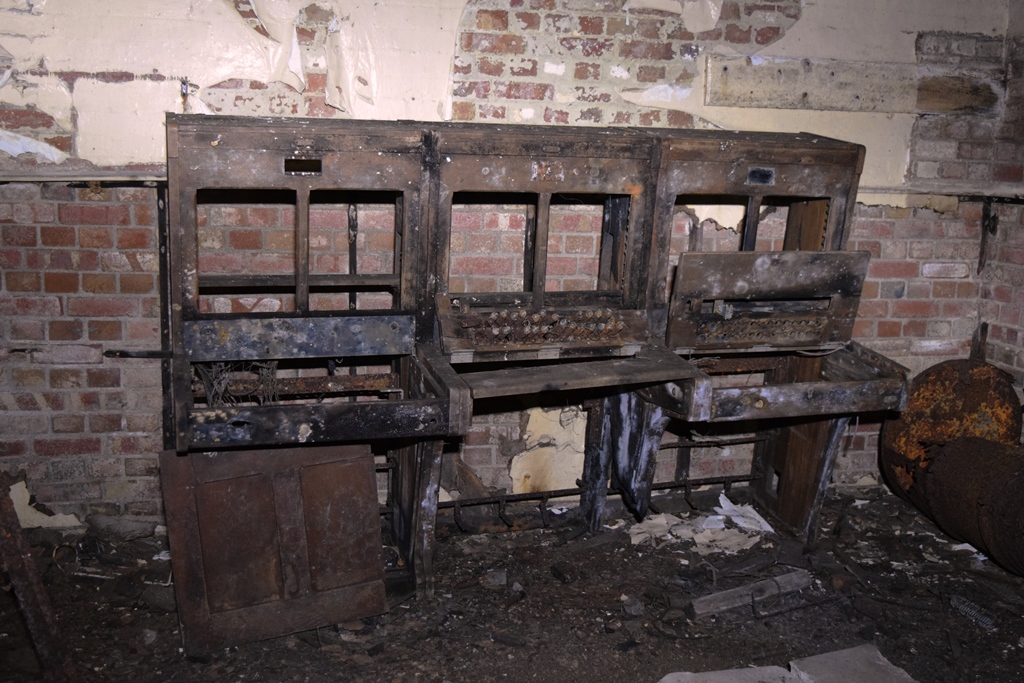

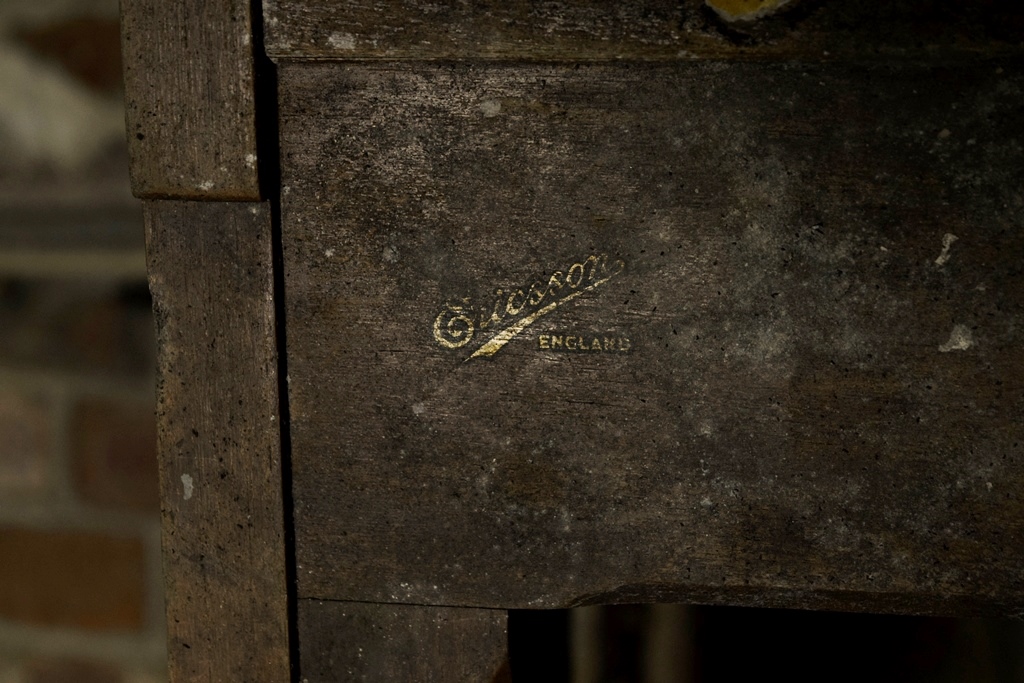

Telephone exchange - Ericsson 3-position PMBX switchboard.


Telephone exchange - Ericsson 3-position PMBX switchboard.

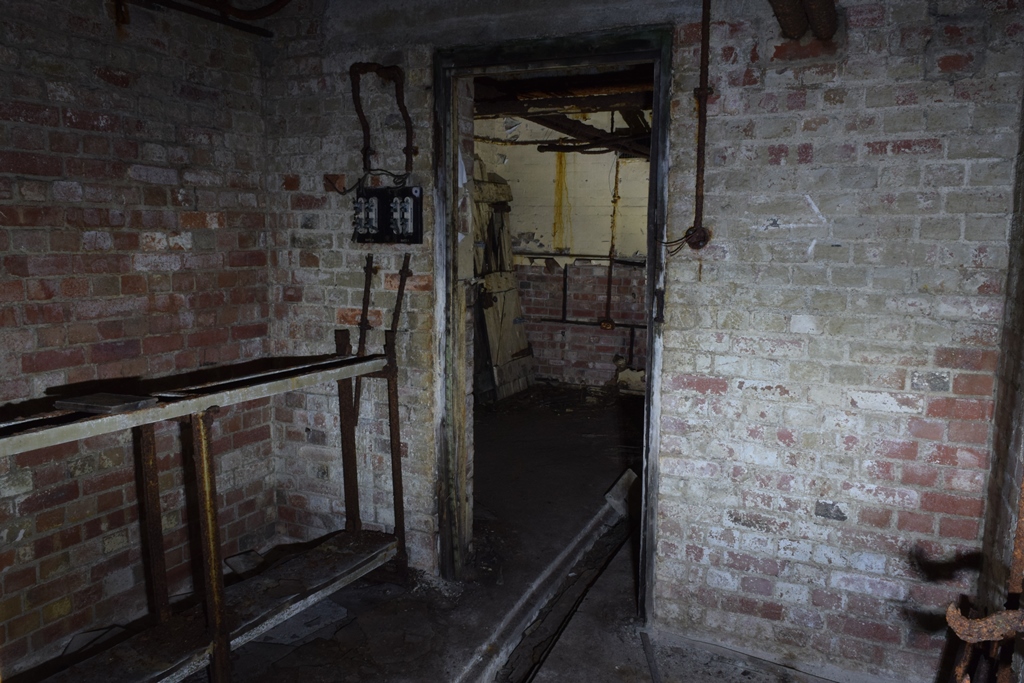

"Backup battery room with battery racks still in place.

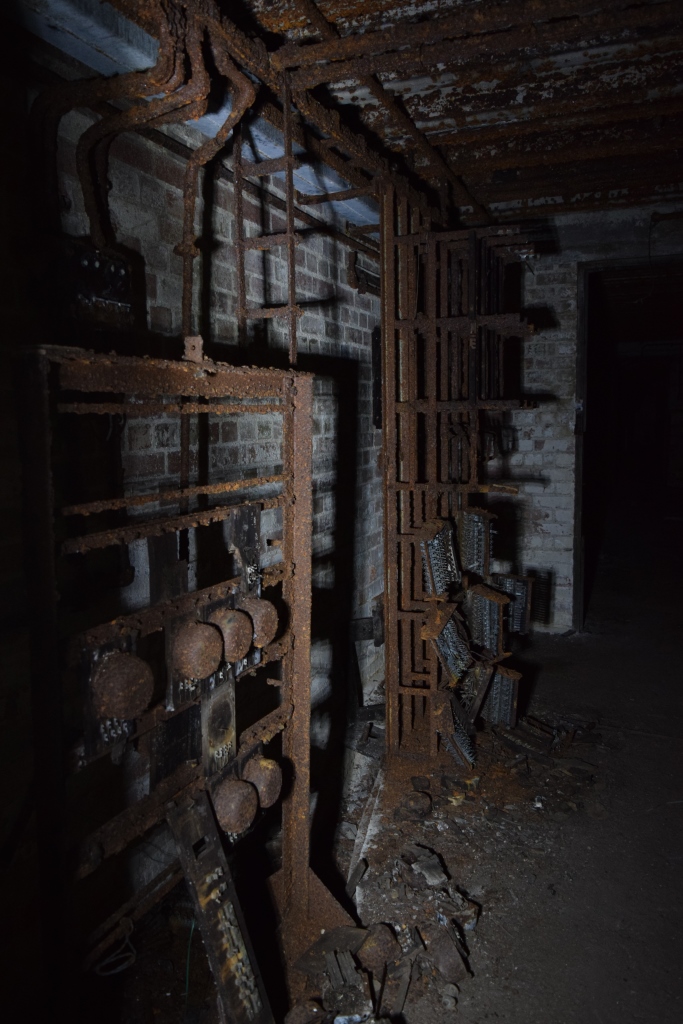

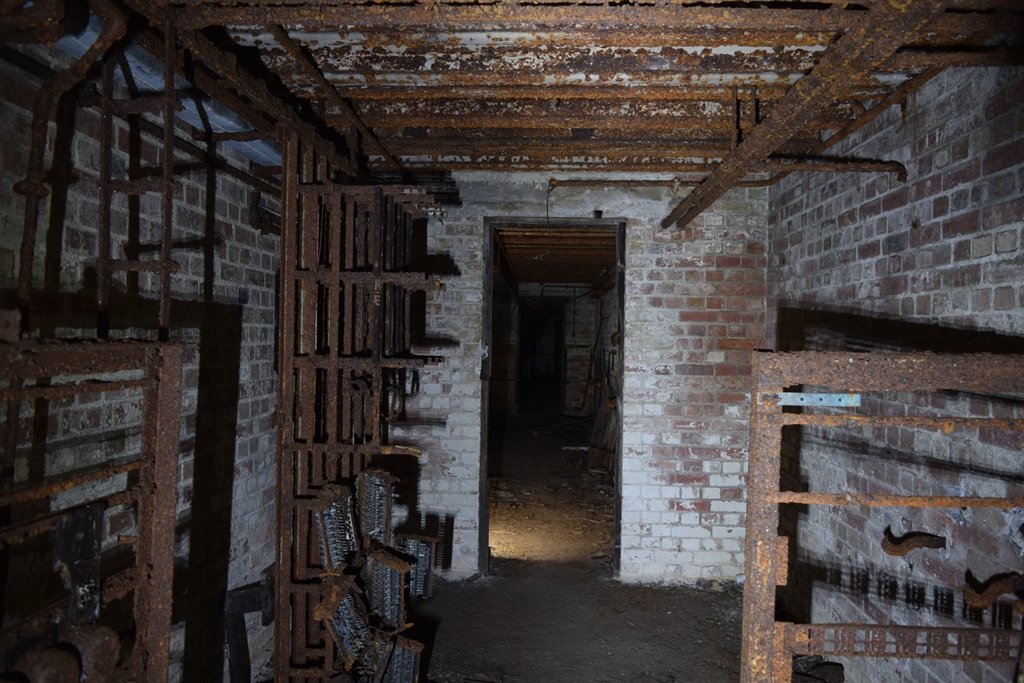

Telephone relay room
Telephone relay room

Telephone relay room
Telephone relay room


Instrument room

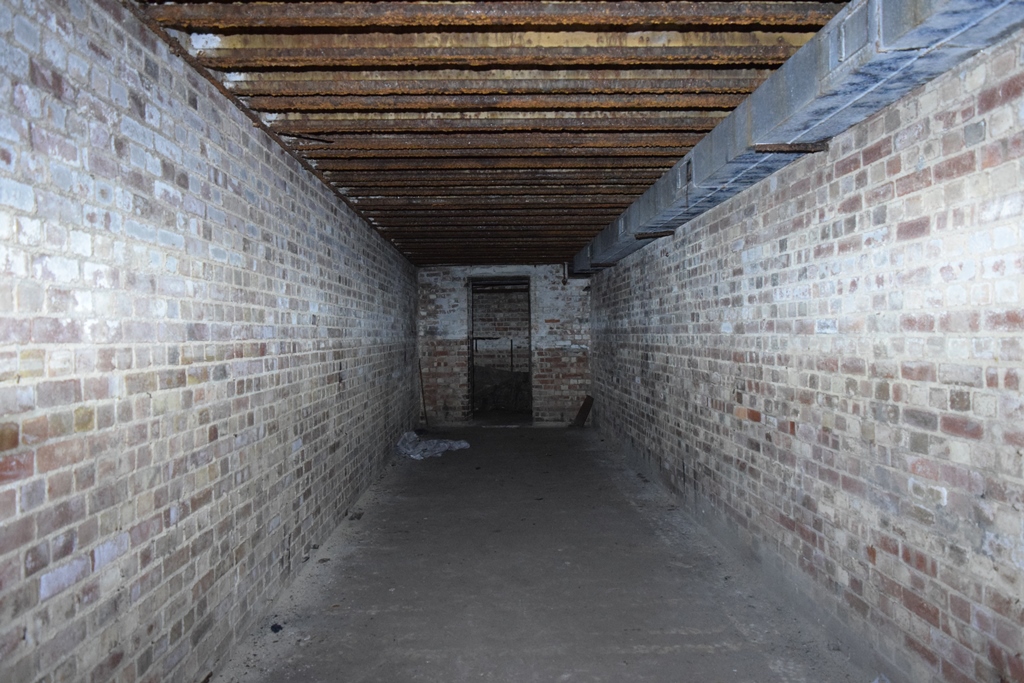

Control Room - desks were arranged against the R/H wall

MORE PICTURES [+/-]

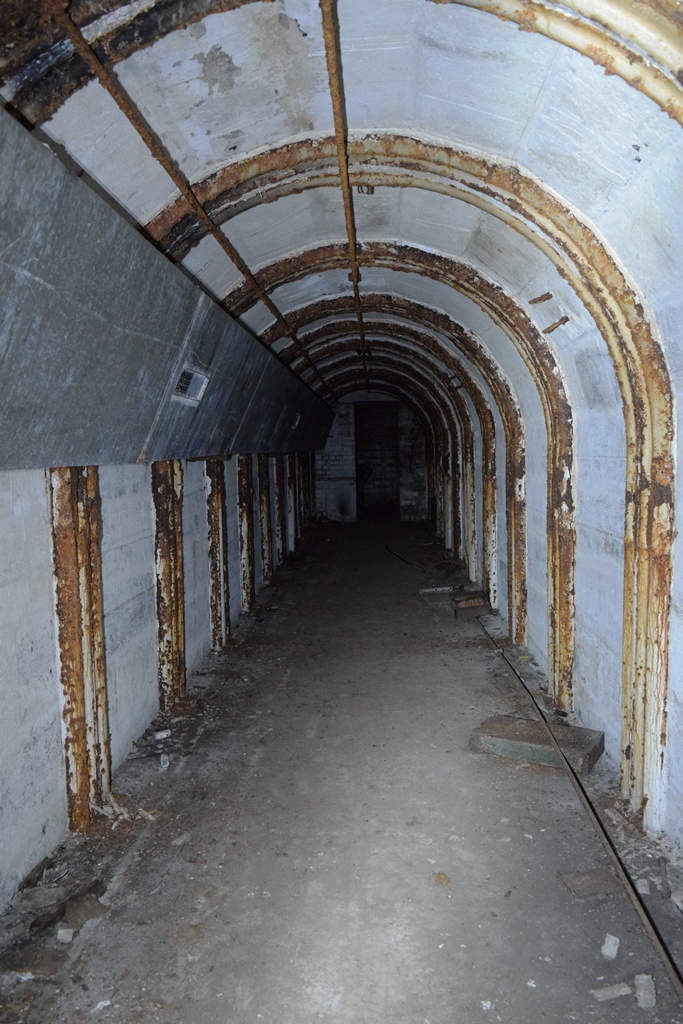

Tunnel leading to one of the three main entrances


Tunnel leading to emergency exit and ventilation plant

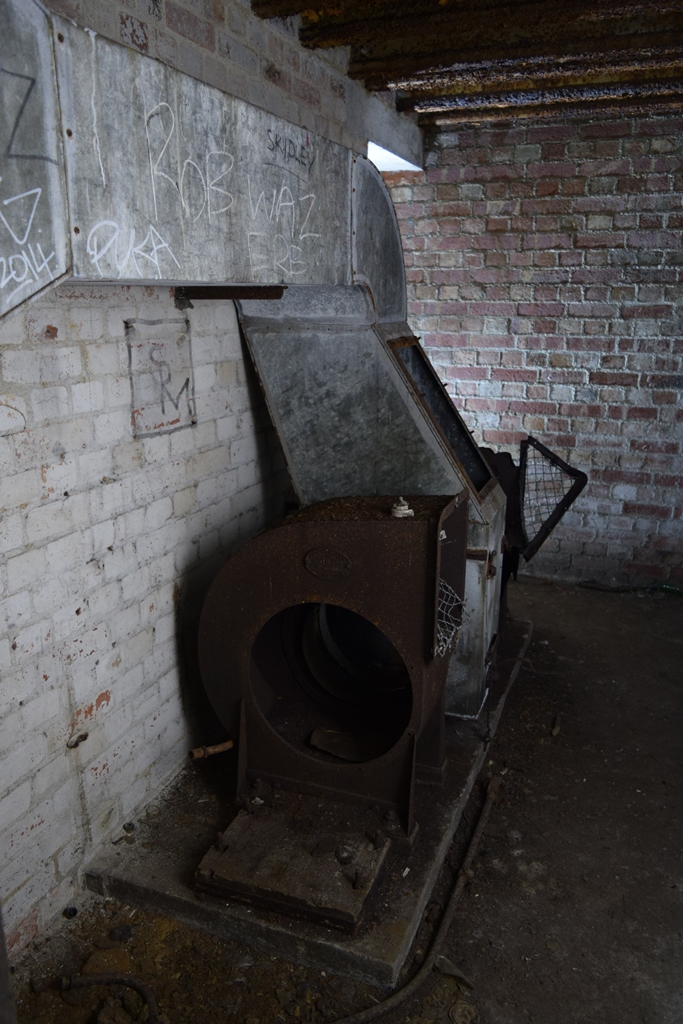

Ventilation plant


Ventilation plant

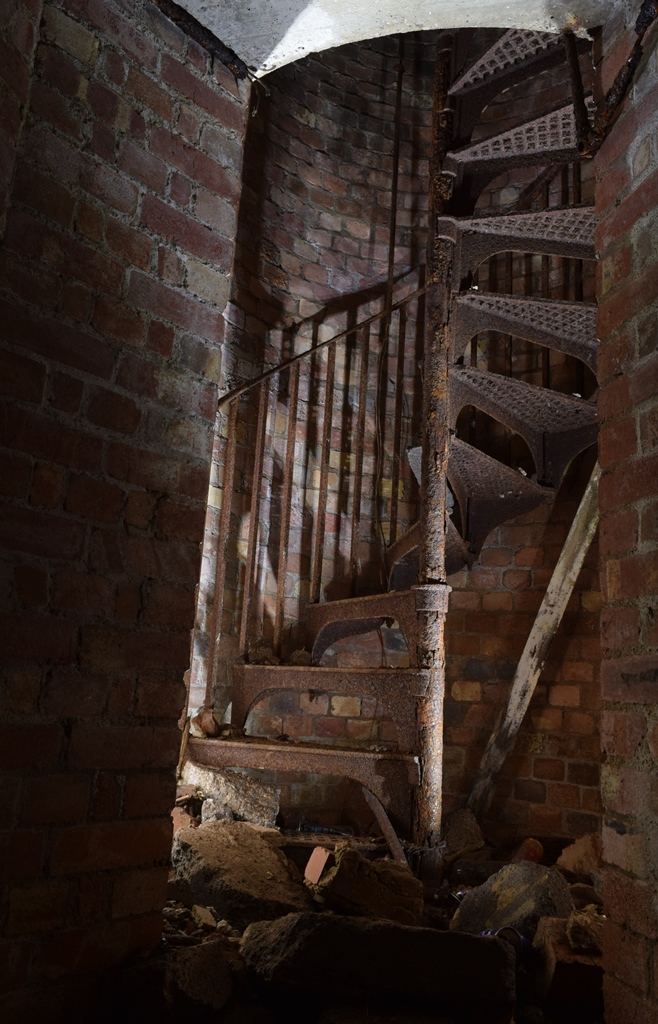

79 rusty steps lead to an emergency exit about 60' above

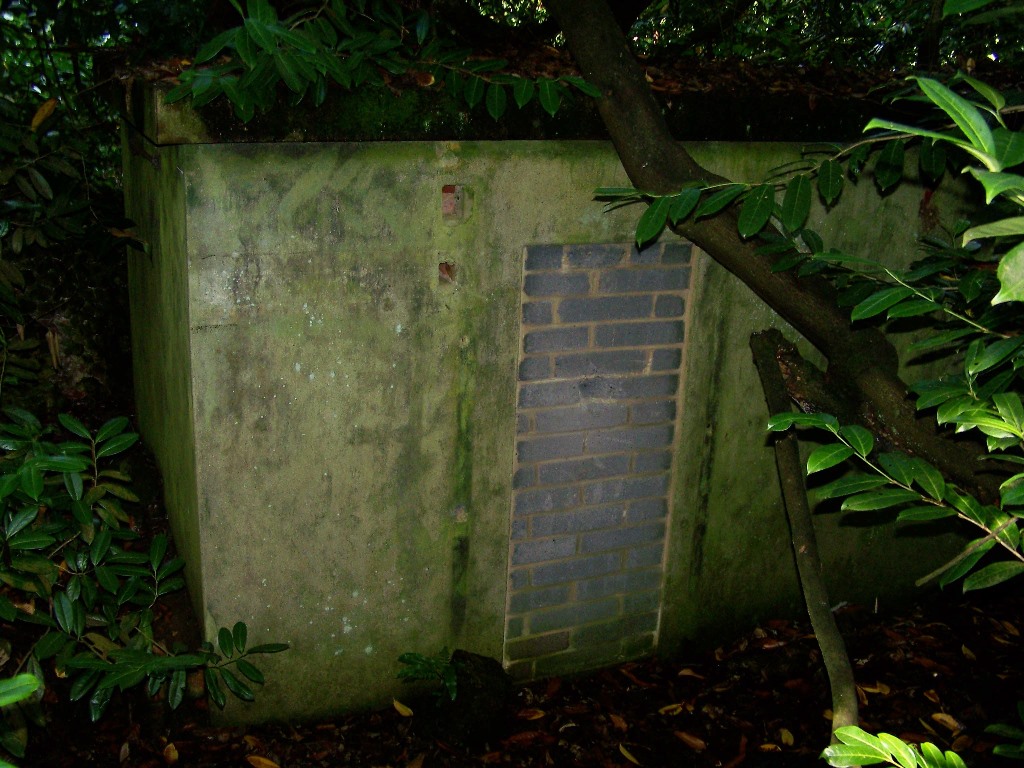

One of several surface buildings of unknown purpose

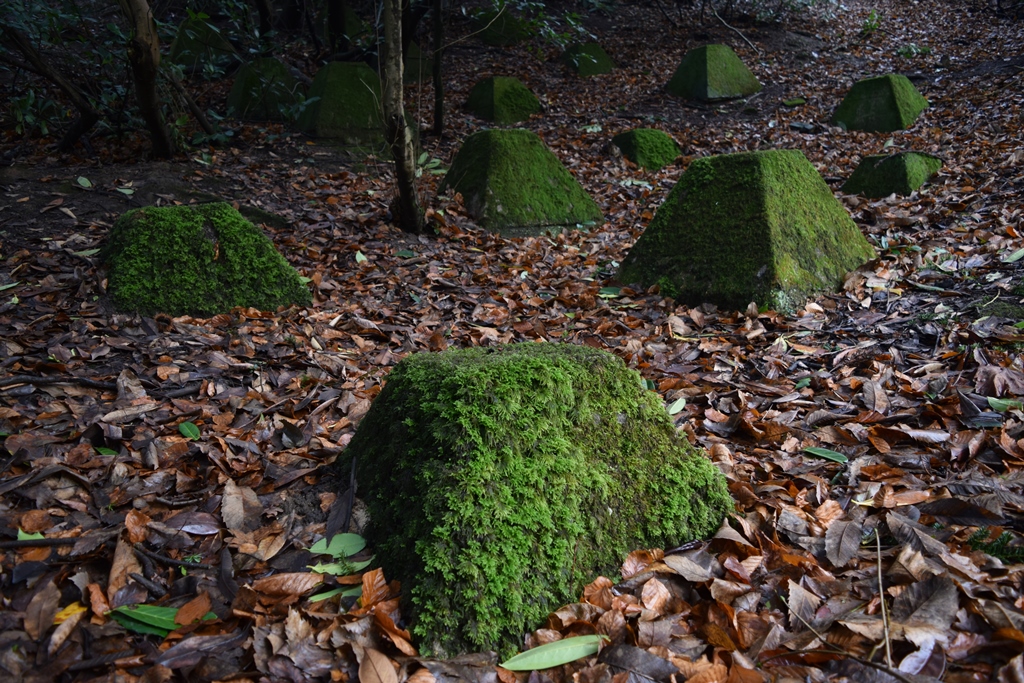

"Dragon's Teeth" anti-tank obstacles around the top of the dene.

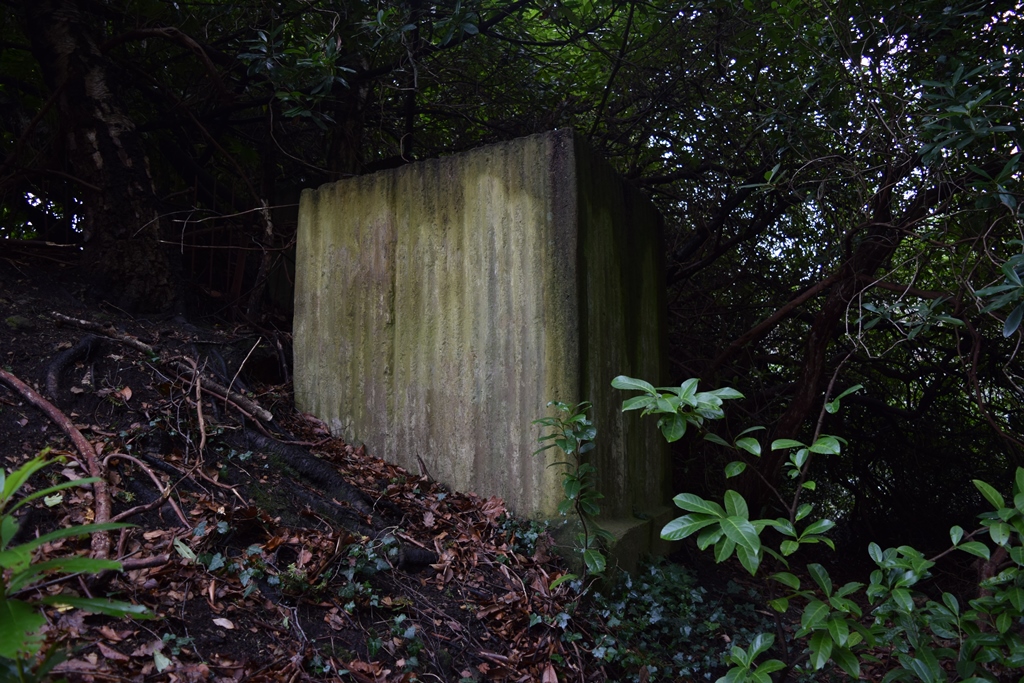

Massive anti-tank block on the north side of the dene.

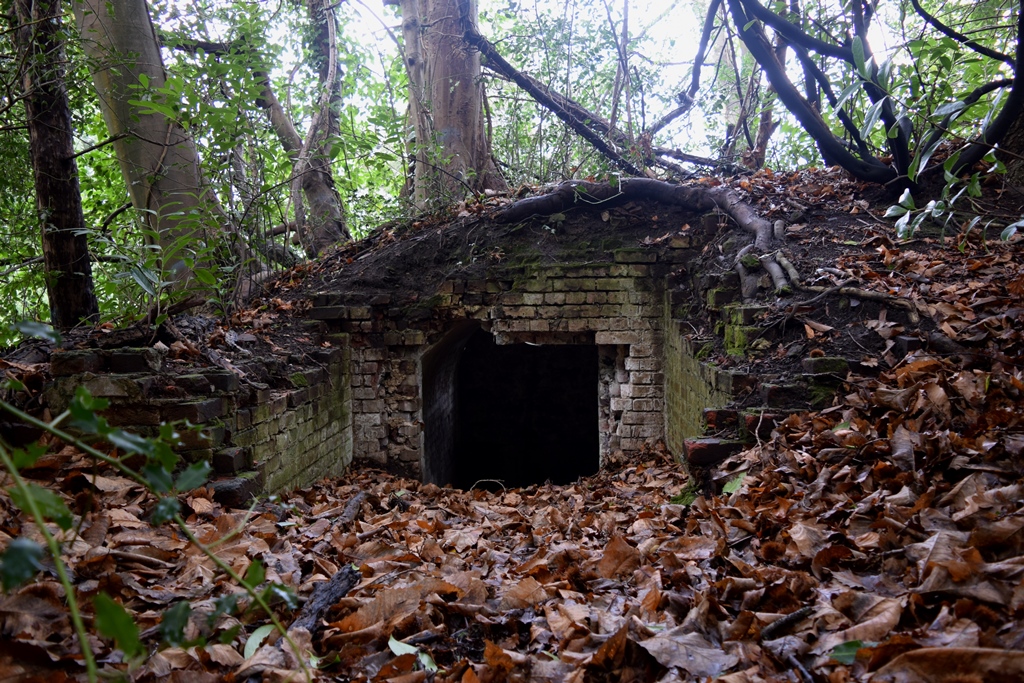

"Entrance to underground rifle range


"Entrance to underground rifle range

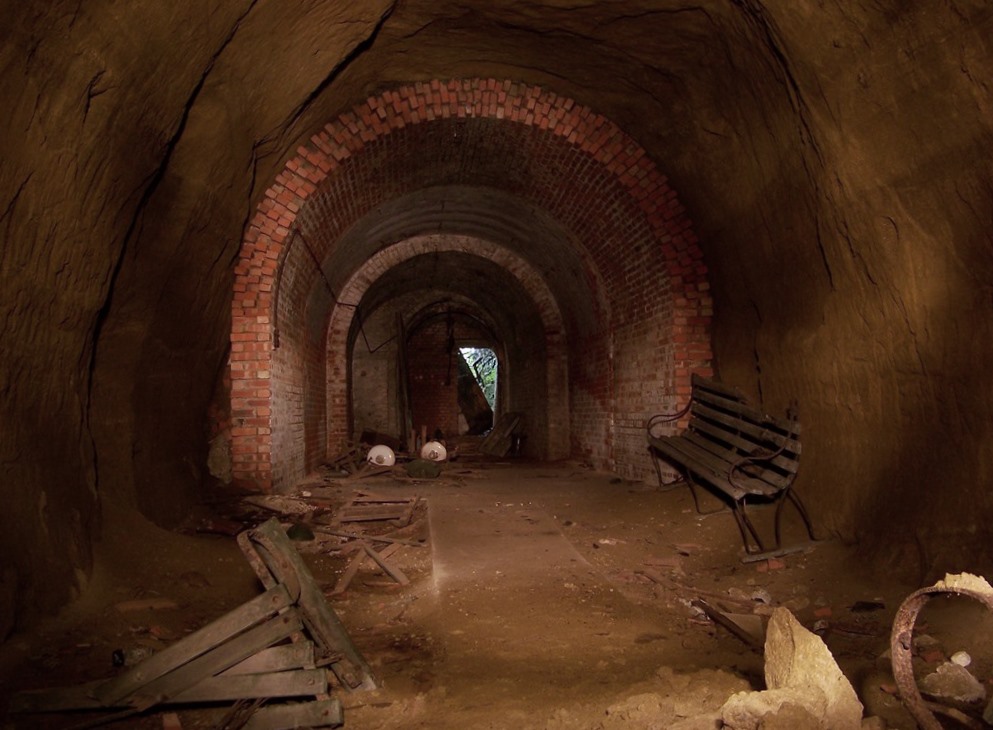

Underground rifle range on the other side of the dene
Underground rifle range - the unfinished sand wall absorbed the force from bullets after they had met - or missed - their target.

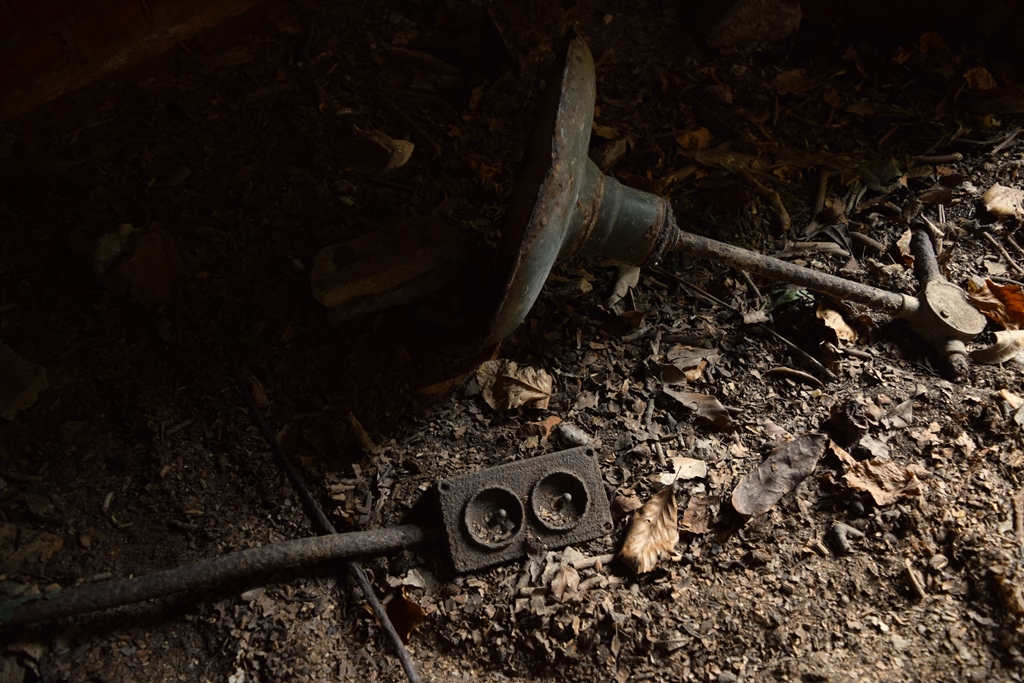

Remains of lighting in underground rifle range


The former icehouse was used as storage space by the Southern Railway and later BR.


Old icehouse adapted as storage space.

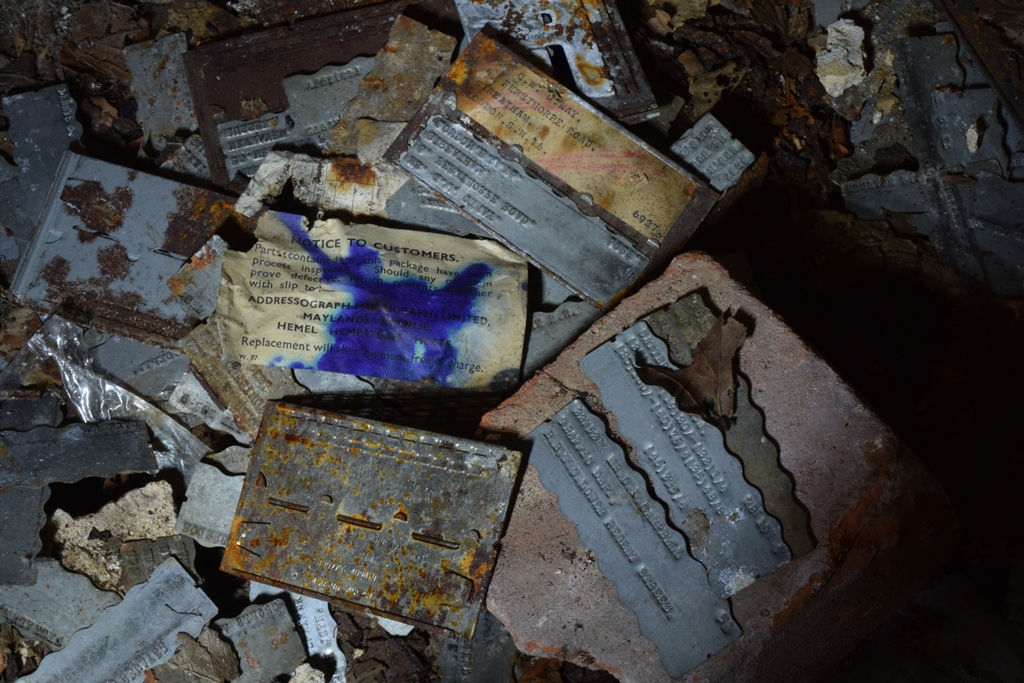

BR-era Addressograph machine labels in the old icehouse. These were used to print envelopes for mass-mailings


An old kettle in the icehouse

The bunker housed 30 staff from the Operating, Motive Power, Chief Mechanical Engineer, and Chief Electrical Engineer's Departments. The accommodation included a Control Room, meeting facilities, a backup battery room in case of power failure, a bedroom for the night officer and a fully-equipped telephone switchboard and distribution frame, with connections to the various divisional traffic and engineering offices across the South East.

A 99' mast for emergency radio transmissions was installed on the lawn outside the caves, while an anti-aircraft gun was sited on the garden terrace. Other developments included an underground rifle range used by the railway's own Home Guard detachment and a formidable wall of concrete anti-tank obstacles halfway up the dene. The railway operation for the transport of nearly 320,000 troops returning from Dunkirk was co-ordinated from here, as was the moving of supplies and troops prior to D-Day.

The tunnels continued in use after the war and were taken over by the newly nationalised British Railways - although air raids had ceased with Victory in Europe, 50' of earth, rock and hardened concrete were felt to offer reassuring protection against the new threat of a nuclear attack on London or other nearby cities. By the early 60s, however, the old mansion had become drafty, antiquated and expensive to maintain. British Rail left in 1966. It was sold to Federated Homes Ltd, a development company, who completely demolished it three years later to make way for a large office block. Untouched by all this commotion, the tunnels remained, hidden half-forgotten as the gardens were left to ruin.


I've been watching Deepdene since about 2004. Growing up in Dorking, my dad played here as a child - half-legendary stories were handed down of hidden entrances and long, dark tunnels into the hillside.

When I first made my way here, the Dene was still covered in dense rhododendron forest. Dark, damp ruins loomed up out of the bushes, detached and difficult to interpret. With time, I located four tunnel entrances, but of course, they were all sealed.

Since then I've often been back. I'd hear rumours that the complex had been opened and return only to find it sealed again: I wasn't to have my chance until nearly fourteen years later. In that time, the rhododendrons were cleared away and the dene became a public garden, capturing something of the grandeur of the landscaped grounds that once stretched from the now-demolished mansion, up a Jacob's Ladder of flint-cobbled steps to a temple on top of the hill.

News that the tunnels were open again reached me late one winter evening after an failed recce of a declining hospital on the edge of London. This time the news was fresh, and I knew I had precious little time to take make a move. A full moon was high above the trees and I barely needed my torch until I found the entrance, wide open as I'd been promised.

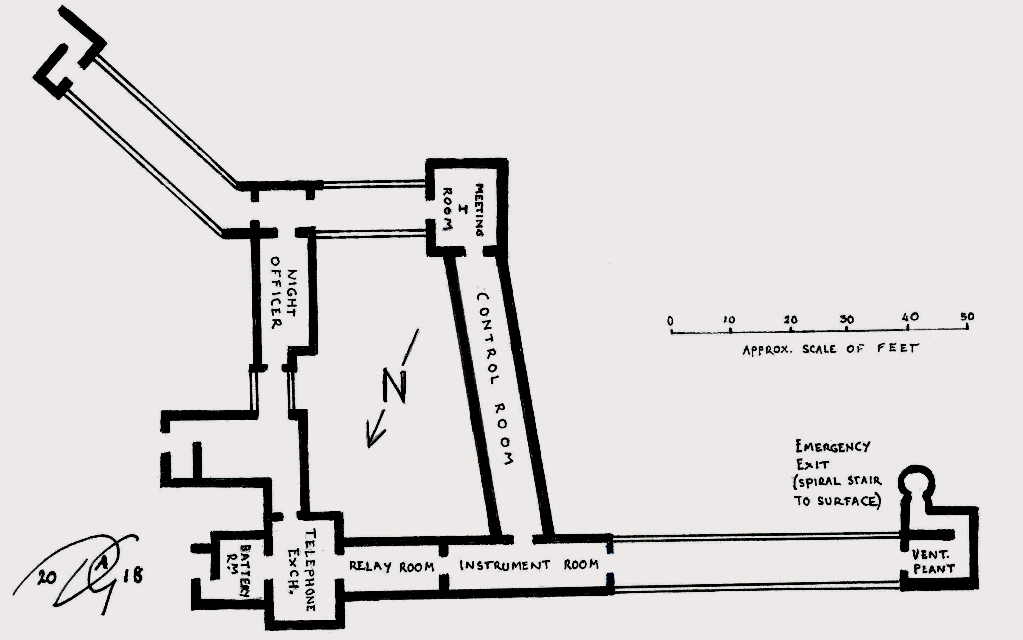

Two tunnels are bored into the hillside, interconnected by two transverse chambers, one containing a vestibule and the night officer's bedroom, the other a long control room, empty of all but the ventilation ducting. The northern tunnel is much more interesting, forming the heart of the underground HQ: the battery room, ventilation plant, and, the star attraction, the original wood-framed switchboard and telephone distribution frame, rusted solid. It may have taken me a long time to find a way in, but it was worth the wait, I'd say...

Would-be visitors are advised that the tunnels contain significant quantities of friable asbestos materials and have now been sealed. Any attempt to force entry would constitute a criminal offence and may put you and others at risk.


Bibliography

Catford, N & Tyrell, M, "SiteName: Deepdene - WW2 Southern Railway Traffic Control Centre" (2009)
[http://www.subbrit.org.uk/rsg/sites/d/deepdene_house/index.html - accessed 20/01/18]

Historic England, "The Deepdene (including Chart Park) List entry Number: 1000143" (2012)
[https://historicengland.org.uk/listing/the-list/list-entry/1000143 - accessed 20/01/18]

Historic Environment Scotland, "Britain from Above" (2013)
[https://britainfromabove.org.uk/image/epw006243 - accessed 20/01/18]

Laurie, P, "Beneath the City Streets: A Private Enquiry Into Government Preparations for National Emergency", (1979) p172

Mercer, D & Jackson, A, "The Deepdene, Dorking", (1996)

Mercer, D & E, "Chart Park Dorking: A vanished Surrey Mansion", (1993)

Southern Railway Co - "Plans for Underground Telephone Exchange" (1941)
